Factors to consider when selecting the closed loop stepper motor

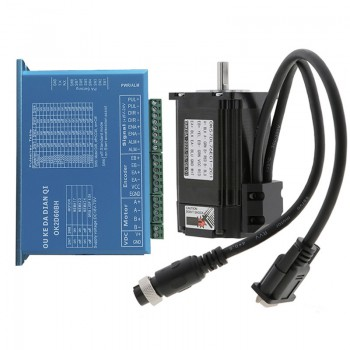

1.Brief of closed loop stepper motor

A closed-loop stepper motor is a stepper motor system that uses a feedback mechanism, typically an encoder, to continuously monitor the motor's actual position and speed. This feedback is sent to the controller, which compares it to the commanded position and makes real-time adjustments to correct any discrepancies, preventing step loss and ensuring high accuracy, reliability, and smooth operation, even under varying loads.

2.Working principle of closed loop stepper motor

1.Command input: The system's controller sends a command specifying the desired position, speed, and torque to the motor driver.

2.Motion execution: The driver converts these commands into electrical signals, energizing the motor windings to make the rotor move.

3.Position feedback: Simultaneously, the encoder monitors the actual position of the motor's shaft and sends this information to the controller.

4.Error correction: The controller compares the feedback position with the commanded position. If there's a discrepancy, the controller adjusts the electrical signals to the motor to correct the position and get it back on track.

5.Continuous adjustment: This process repeats continuously, ensuring the motor's actual position matches the commanded position, even if the load changes or the motor is obstructed.

3.The main functions of closed loop stepper motor parts

1.Stepper motor:This is the core of the system, consisting of a rotor and a stator. The stator creates a magnetic field, and the rotor, which is the rotating part, reacts to this field, moving in precise, discrete steps with each electrical pulse.

2.Encoder:An encoder is a sensor attached to the motor shaft that provides real-time positional feedback. It tracks the motor's exact position and speed, sending this information back to the controller to ensure the motor is following the intended path.

3.Controller:The controller compares the motor's desired position with the actual position reported by the encoder. It then generates error signals and sends them to the motor driver to make any necessary corrections, ensuring the motor performs the task accurately and without losing steps.

4.Motor driver:The driver acts as an intermediary between the controller and the motor. It receives control signals from the controller and converts them into the correct electrical signals to power the motor. In a closed-loop system, the driver also processes the feedback from the encoder to adjust the motor's current and speed, ensuring smooth and accurate operation.

4.Factors to consider when selecting the closed loop stepper motor

1.Torque requirements of closed loop stepper motor:To begin with, assess the torque requirements of your application. Take into account both the ongoing torque necessary for consistent operation and the maximum torque required for occasional surges in power. Whether your application requires a steady torque output or occasional bursts of power, having a clear understanding of these requirements is crucial for maximizing motor performance.

2.Step resolution:Step resolution refers to the smallest angular movement that the motor can achieve. Higher step resolution enables finer control and smoother motion, especially in precision applications such as 3D printing or CNC machining. Evaluate your application’s resolution requirements to ensure compatibility with the selected motor.

3.Speed range of closed loop stepper Motor:Analyze the speed range within which your application operates. Different closed loop stepper motors have varying speed capabilities, and selecting one that aligns with your application’s speed requirements is crucial for achieving desired performance levels.

4.Physical size and weight of closed loop stepper motor:Consider the physical dimensions and weight of the motor, ensuring compatibility with your application’s space constraints. Whether you’re integrating the motor into a compact robotic arm or a larger industrial machine, choosing a motor that fits seamlessly within the allotted space is essential.

5.Environmental conditions:Evaluate the environmental conditions in which the motor will operate, including temperature, humidity, and exposure to dust or contaminants. Whether your application operates in extreme temperatures, high humidity, or dusty environments, choosing a motor with the appropriate protection ratings is essential.

6.Integration with control system:Assess the compatibility of the closed loop stepper motor with your existing control system or the feasibility of integrating it into a new setup.

7.Power supply requirements:Consider the power supply requirements of the closed loop stepper motor, including voltage and current specifications.

8.Feedback mechanism:Evaluate the feedback mechanism incorporated into the closed loop stepper motor, such as encoders or resolvers. Feedback systems provide real-time position information, enabling precise control and accurate motion tracking.
